- Aurora S3 Led Curing Light
- Mã sản phẩm: D546 - Parkell/USA
- Giá bán: Liên hệ
- Lượt xem: 8788 lượt
DEVICE DESCRIPTION

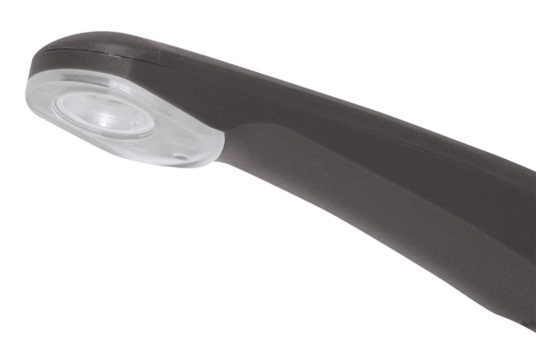

The Aurora™S3 is a high intensity curing light for use with light-cured dental materials. It is designed with an ultra-thin, low profile headand a unique curved shape, allowing excellentaccess to all areas of the mouth, especially the hard-to-reach palatal and lingual surfaces.
The light uses three high-performance Light Emitting Diodes (LEDs) that emit a bright blue beam with a wavelength range of 420-480 nm and a user-selectable intensity of 1000 or 1300 mW/cm2. This high intensity, when combined with the wide beam spot diameter of 11 mm, permits the Aurora S3 to deliverspeedy, complete curing of entire restorations in one cycle.
The Aurora S3 will fully cure materials that include camphorquinone as the photo-initiator. The light is controlled via a single button and has three modes of operation, a 3-second “gel” curing cycle at 1000mW/cm2, a 20-second “standard” curing cycle at 1000 mW/cm2, and a 10-second “turbo” curing cycle at 1300 mW/cm2. Audible tones allow the operator to monitor the progress of each cycle, and stop the curing at any desired duration by simply pressing the button.
The curing light operates on an internal, rechargeable lithium-ion battery which can be replaced if necessary by the user. The unit is capable of battery operation for at least 120 20-second curing cycles between charges. The Aurora S3 may also be operated as a corded light while it is recharging
- Tính năng
- Thông số
- Hướng dẫn
- Sản phẩm liên quan
The Aurora S3 Dental Curing Light is solely intended for the polymerization of visible light-cured dental materials, used in accordance with the instructions provided. It should be used in an environment suitable for the practice of dentistry using clinically acceptable techniques. The light is intended for use by qualified dental professionals including, but not limited to, den-tists, dental hygienists and dental auxiliaries trained in the use of visible light cured materials and equipment

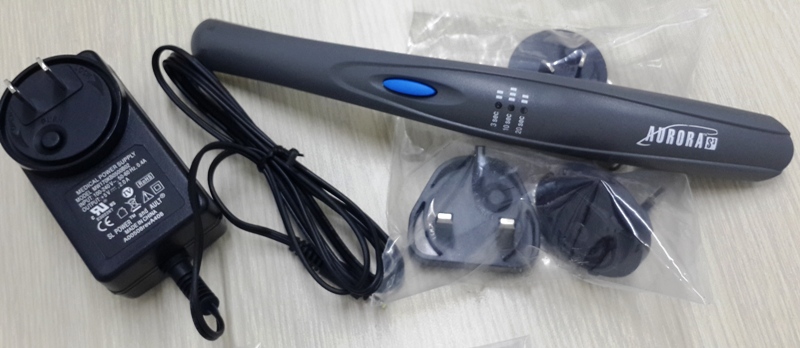

THE AURORA S3 KIT INCLUDES:
1 –Aurora S3 Curing Light
1 – Wall Power Transformer / Charger
2 –Clear Curing Lenses
1 –Black Tacking Lens
1 – Plastic Barrier Sleeve Sample
1 – Instructions for use and
Warranty registration card
1 –Rechargeable Batter
CURING LIGHT SPECIFICATIONS
Power Supply: Lithium-Ion battery, 3.7 V, 2000 mA
Wavelength Range: 420-480 nm
Light Intensity (approx.): 1000—1300mW/cm2
Operation:
Duty cycle of 1.5 minutes ON, 5 minutes OFF
Dimensions (approx.): Length 9.4” (240 mm);
Diameter 1” (25 mm)
Weight (approx.): 4 oz (111 g)
WALL POWER TRANSFORMER/ CHARGER SPECIFICATIONS
Operating Voltage: 100-240 VAC, 50/60 Hz input
Output Voltage: 5 VDC
Output Current: 2.0 A
Dimensions: 3.4” (86 mm) x 1.8” (46 mm) x 1.3” (33mm)
Weight: 4.2 oz (120g)
Classification: Class II Equipment
Operating temperature: 10°-32°C
Relative humidity: 30%-75%
The time to charge a discharged battery is approximately 3 hours
